Details
Parametry
Find similar products
Brand
Symbol
2JF0604P-010MC137-UFL
Producer code
5900000684925
Product length in millimeters
74.9
Impedance
50 Ohm
Product width in millimeters
8.1
Temperature range
-40...+85°C
Antenna type
FPC
Antenna connector type
IPEX
Product height in millimetres
0.1
Technology
UMTS
GSM
Cable length (in milimeters)
100
Mounting
Adhesive
Positioning
Internal
Radiation pattern
Omni-directional
Frequency
1710 - 2170 MHz
824 - 960 MHz
Max. VSWR
2,4
Max. gain
1,7 dBi
Polarisation
Linear

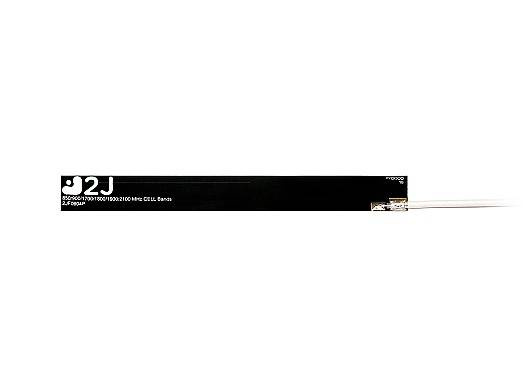

2J Antennas 2JF0604P-010MC137-UFL
2JF0604P is an embedded, adhesive-mounted, FPC antenna from 2J Antennas, optimized for 3G+2G. The antenna supports frequencies from 824-960 MHz, 1710-2170 MHz ranges. The product dimensions are 74.9 x 8.1 x 0.1 mm, cable 100 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
