2J Antennas 2JF0524P-015MC137-UFL - 4G antenna
2J Antennas 2JF0524P-015MC137-UFL - 4G antenna
2J Antennas 2JF0524P-015MC137-UFL - 4G antenna
2J Antennas 2JF0524P-015MC137-UFL - 4G antenna

2J Antennas 2JF0524P-015MC137-UFL - 4G antenna

Antenna typeFPC
Antenna connector typeIPEX
MountingAdhesive
TechnologyLTEUMTSNB-IoTGSM
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2JF0524P
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2JF0524P-015MC137-UFL
Producer code
5900000836959
Antenna typeAntenna type
FPC
Antenna connector typeAntenna connector type
IPEX
MountingMounting
Adhesive
TechnologyTechnology
LTE
UMTS
NB-IoT
GSM
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
114.7
Product width in millimetersProduct width in millimeters
19
Product height in millimetresProduct height in millimetres
0.2
Cable length (in milimeters)
150
Temperature rangeTemperature range
-40...+85°C
Frequency
698 - 960 MHz
1710 - 2170 MHz
Radiation pattern
Omni-directional
Max. VSWR
1,7
Max. gain
2,7 dBi
Polarisation
Linear
Impedance
50 Ohm
Search

2J Antennas 2JF0524P-015MC137-UFL

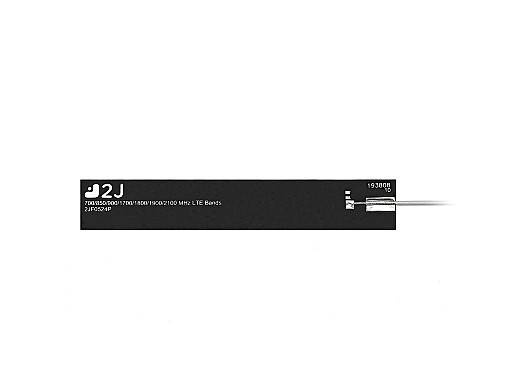

2JF0524P is an embedded, adhesive-mounted, FPC antenna from 2J Antennas, optimized for 4G and supporting 3G, 2G and LPWA standards as well. The antenna supports frequencies from 698-960 MHz, 1710-2170 MHz ranges. The product dimensions are 114.7 × 19 × 0.2 mm, cable 150 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
