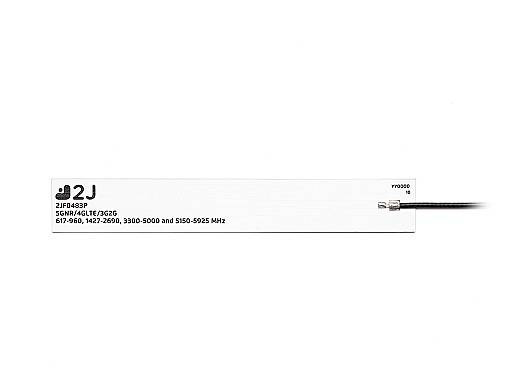

2J Antennas 2JF0483P - 5GNR antenna
Details
Parametry
Find similar products
Brand
Symbol
2JF0483P-018MC137B-UFL
Producer code
5900000820903
Antenna type
FPC
Antenna connector type
IPEX
Mounting
Adhesive
Technology
LTE
UMTS
NB-IoT
5G - Sub-6 GHz
GSM
Product length in millimeters
95.5
Product width in millimeters
14
Product height in millimetres
0.2
Cable length (in milimeters)
180
Positioning
Internal
Temperature range
-40...+85°C
Frequency
617 - 960 MHz
1427 - 2690 MHz
3300 - 5000 MHz
5150 - 5925 MHz
Radiation pattern
Omni-directional
Max. VSWR
2,9
Max. gain
5,4 dBi
Polarisation
Linear
Impedance
50 Ohm
2J Antennas 2JF0483P
2JF0483P is an embedded, adhesive-mounted, FPC antenna from 2J Antennas, optimized for 5GNR and supporting 4G, 3G, 2G and LPWA standards as well. The antenna supports frequencies from 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, 5150-5925 MHz ranges. The product dimensions are 95.5 × 14 x 0.2 mm, cable 180 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
