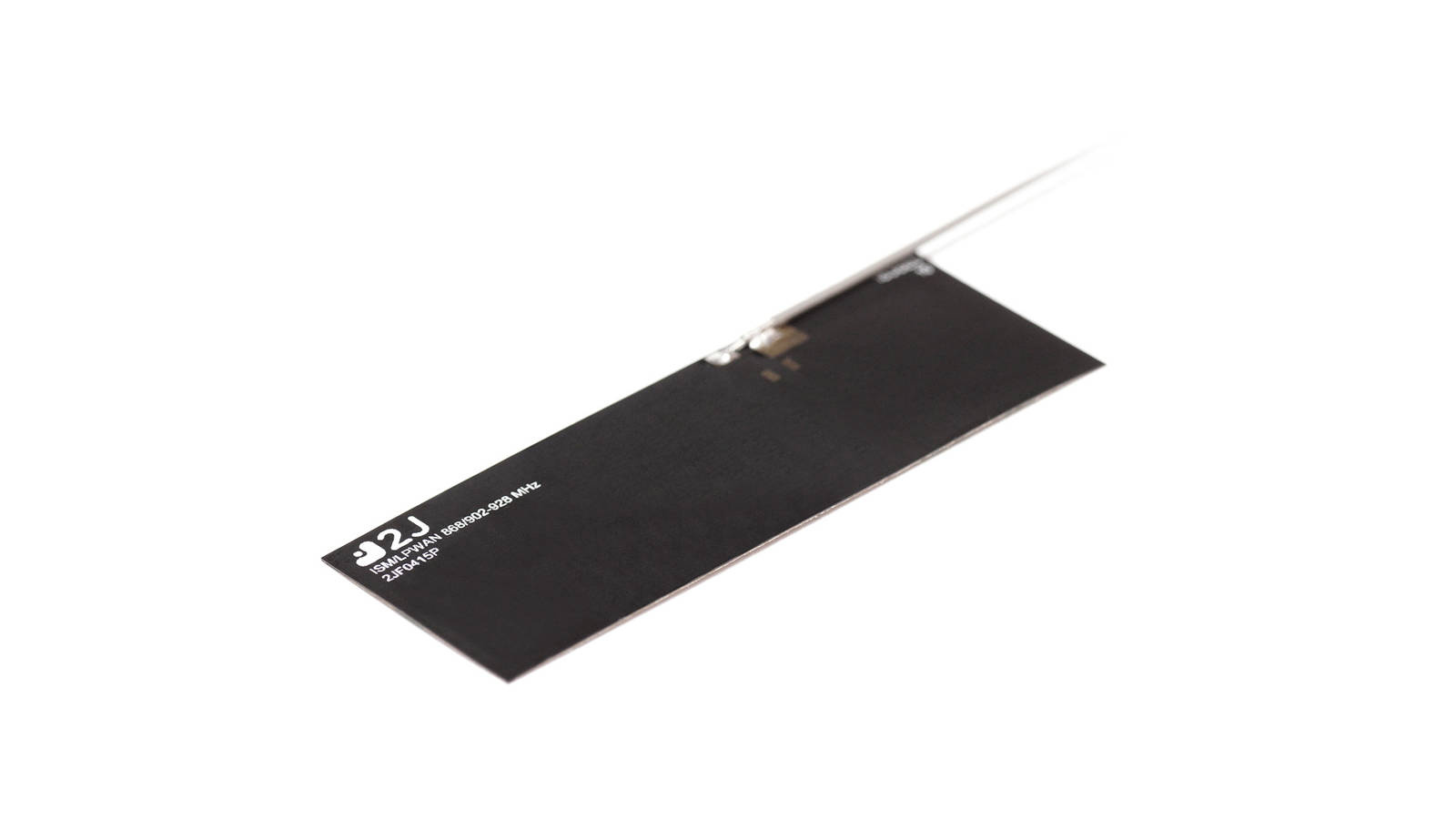

2J Antennas 2JF0415P-010MC137-UFL - ISM antenna

2J Antennas 2JF0415P-010MC137-UFL - ISM antenna

TechnologyISMIEEE 802.15.4LoRa
PositioningInternal
MountingAdhesive
Antenna typeFPC
Antenna connector typeIPEX
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2JF0415P
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2JF0415P-010MC137-UFL
Producer code
5900000764153
TechnologyTechnology
ISM
IEEE 802.15.4
LoRa
PositioningPositioning
Internal
MountingMounting
Adhesive
Antenna typeAntenna type
FPC
Antenna connector typeAntenna connector type
IPEX
Cable length (in milimeters)
100
Product length in millimetersProduct length in millimeters
70
Frequency
863 - 870 MHz
902 - 928 MHz
Product width in millimetersProduct width in millimeters
22
Product height in millimetresProduct height in millimetres
0.2
Temperature rangeTemperature range
-40...+85°C
Radiation pattern
Omni-directional
Polarisation
Linear
Max. VSWR
2,3
Max. gain
3,6 dBi
Impedance
50 Ohm
Search

2J Antennas 2JF0415P-010MC137-UFL

2JF0415P is an embedded, adhesive-mounted, FPC antenna from 2J Antennas, optimized for ISM as well as supporting ZigBee, SigFox and LoRa standards. The antenna supports frequencies from 863-870 MHz, 902-928 MHz bands. The product dimensions are 25.0 x 70.0 x 0.2 mm, cable 100 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
