Brand
Symbol
2JF0301P-010MC137-UFL
Producer code
5900000788142
Product length in millimeters
55.4
Impedance
50 Ohm
Product width in millimeters
12.4
Temperature range
-40...+85°C
Antenna type
FPC
Antenna connector type
IPEX
Product height in millimetres
0.2
Technology
GNSS
Cable length (in milimeters)
100
Mounting
Adhesive
Positioning
Internal
Radiation pattern
Omni-directional
Frequency
1561 - 1602 MHz (L1)
Max. gain
4 dBi
Polarisation
Linear

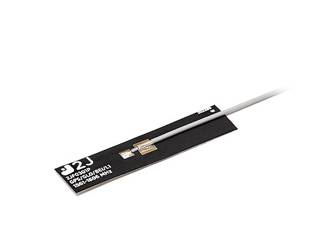

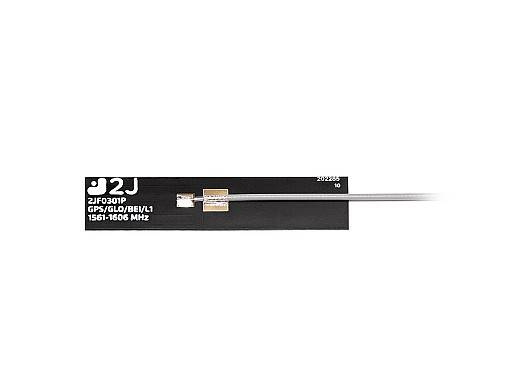

2J Antennas 2JF0301P-010MC137-UFL
2JF0301P is an embedded, adhesive-mounted, FPC antenna from 2J Antennas, optimized for GNSS. The antenna supports frequencies from 1561 MHz, 1575 MHz, 1602 MHz bands. The product dimensions are 55.4 × 12.4 × 0.2 mm, cable 100 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
