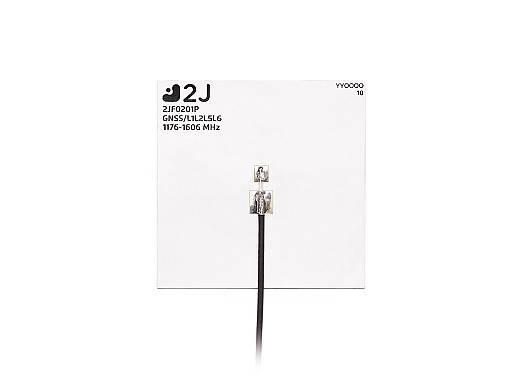

2J Antennas 2JF0201P - GNSS antenna
2J Antennas 2JF0201P - GNSS antenna
2J Antennas 2JF0201P - GNSS antenna
2J Antennas 2JF0201P - GNSS antenna

2J Antennas 2JF0201P - GNSS antenna

Antenna typeFPC
Antenna connector typeIPEX
TechnologyGNSS
MountingAdhesive
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2JF0201P
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2JF0201P-010MC137-UFL
Producer code
5900000821016
Product length in millimetersProduct length in millimeters
45.4
Impedance
50 Ohm
Product width in millimetersProduct width in millimeters
45.4
Temperature rangeTemperature range
-40...+85°C
Antenna typeAntenna type
FPC
Antenna connector typeAntenna connector type
IPEX
Product height in millimetresProduct height in millimetres
0.2
TechnologyTechnology
GNSS
Cable length (in milimeters)
100
MountingMounting
Adhesive
PositioningPositioning
Internal
Radiation pattern
Omni-directional
Frequency
1176 - 1606 MHz
Max. VSWR
2,1
Max. gain
4,9 dBi
Polarisation
Linear
Search

2J Antennas 2JF0201P

2JF0201P is an embedded, adhesive-mounted, FPC antenna from 2J Antennas, optimized for GNSS. The antenna supports frequencies from 1176-1208 MHz, 1227-1246 MHz, 1268-1279 MHz, 1561-1606 MHz bands. The product dimensions are 45.4 × 45.4 × 0.2 mm, cable 100 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
