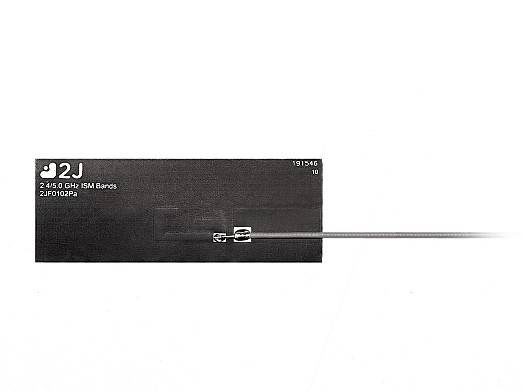

2J Antennas 2JF0102Pa-010MC137-UFL - ISM antenna
Log in
Details
Parametry
Find similar products
Brand
Symbol
2JF0102Pa-010MC137-UFL
Producer code
5900000743714
Product length in millimeters
67.5
Impedance
50 Ohm
Product width in millimeters
22
Temperature range
-40...+85°C
Antenna type
FPC
Antenna connector type
IPEX
Product height in millimetres
0.2
Technology
ISM
Bluetooth
WiFi 6
IEEE 802.15.4
Cable length (in milimeters)
100
Mounting
Adhesive
Positioning
Internal
Radiation pattern
Omni-directional
Frequency
2410 - 2490 MHz
4920 - 5925 MHz
5925 - 7125 MHz
Max. VSWR
2,2
Max. gain
4,7 dBi
Polarisation
Linear
2J Antennas 2JF0102Pa-010MC137-UFL
2JF0102Pa is an embedded, adhesive-mounted, FPC antenna from 2J Antennas, optimized for ISM as well as supporting WiFi 6e, Bluetooth, ZigBee, SigFox and LoRa standards. The antenna supports frequencies from 2410-2490 MHz, 4920-5925 MHz, 5925-7125 MHz bands. The product dimensions are 67.5 × 25.0 × 0.2 mm, cable 100 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
