Brand
Symbol
2J7C01MC3F
Producer code
5900000754208
Antenna connector type
SMA male
Cable length (in milimeters)
3000
Mounting
Magnetic
Technology
GNSS
Positioning
External
Product height in millimetres
21.5
Product diameter in millimetres
54
Ingress Protection
IP67
IP69
Temperature range
-40...+85°C
Frequency
1176 MHz (L5)
1561 - 1602 MHz (L1)
Radiation pattern
Hemispherical
Polarisation
RHCP
Max. gain
28 dBi
Max. VSWR
1,8
Impedance
50 Ohm

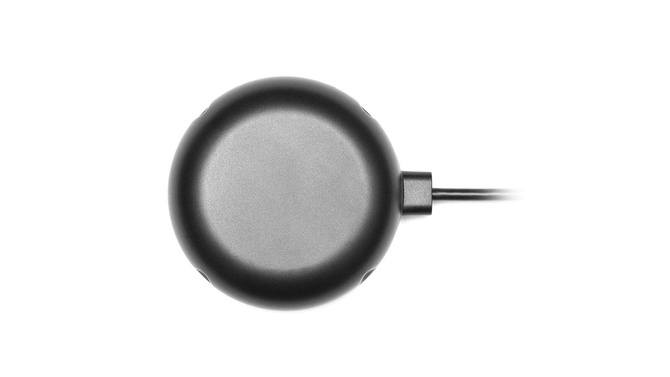

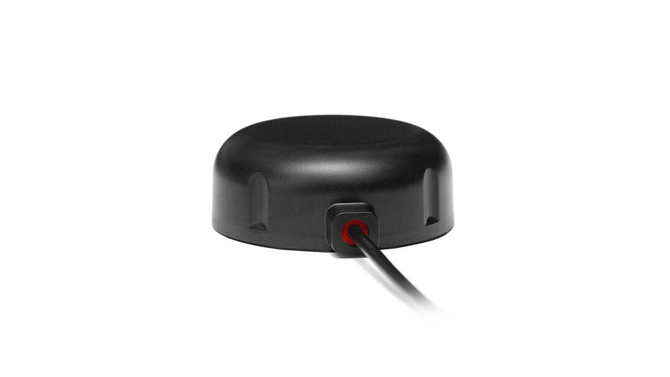

2J Antennas 2J7C01MC3F
2J7C01MC3F is an external, magnetic mounted antenna from 2J Antennas, optimized for GNSS. The antenna supports frequencies from 1176 MHz (L5) and 1561-1606 MHz (L1) bands. The product dimensions are Ø 54 × 21.5 mm, cable 300 cm with a male SMA connector. Ingress protection: IP67, IP69. The operating temperature range of the antenna is -40...+85°C.
