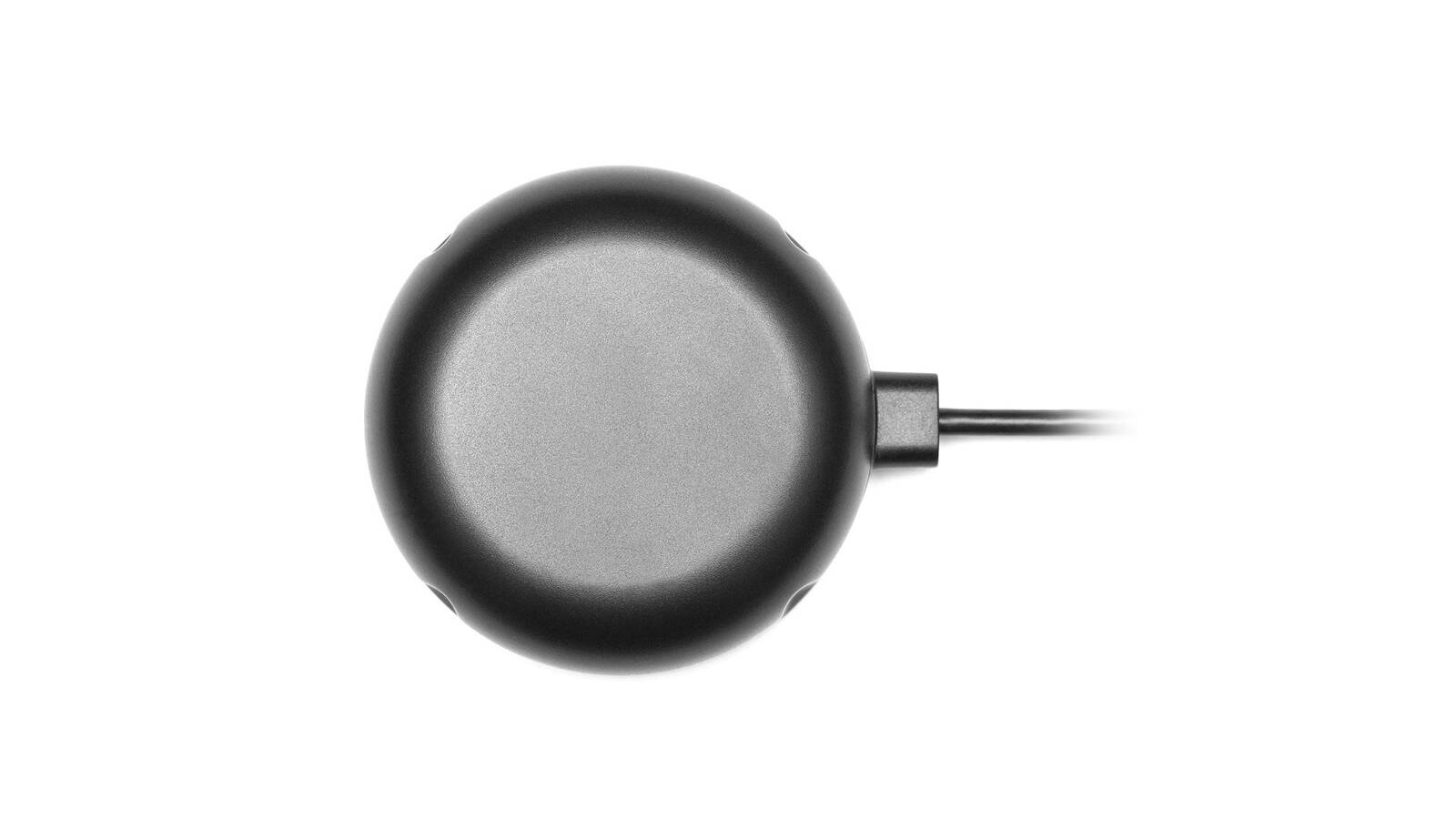

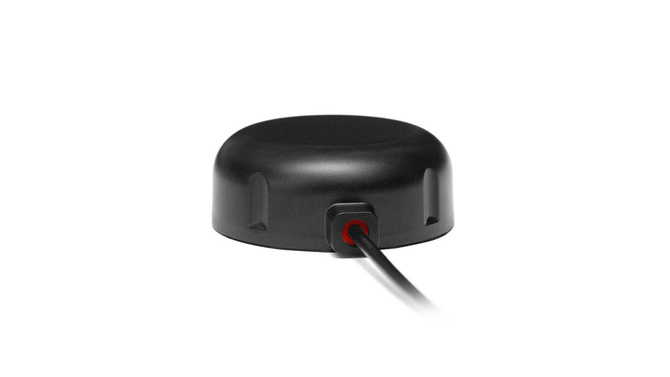

2J Antennas 2J7C01MC2F - GNSS antenna
2J Antennas 2J7C01MC2F - GNSS antenna
2J Antennas 2J7C01MC2F - GNSS antenna
2J Antennas 2J7C01MC2F - GNSS antenna

2J Antennas 2J7C01MC2F - GNSS antenna

Antenna connector typeSMA male
Cable length (in milimeters)3000
MountingMagnetic
TechnologyGNSS
PositioningExternal
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2J7C01MC2F
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2J7C01MC2F
Antenna connector typeAntenna connector type
SMA male
Cable length (in milimeters)
3000
MountingMounting
Magnetic
TechnologyTechnology
GNSS
PositioningPositioning
External
Product height in millimetresProduct height in millimetres
21.5
Product diameter in millimetresProduct diameter in millimetres
54
Ingress ProtectionIngress Protection
IP67
IP69
Temperature rangeTemperature range
-40...+85°C
Frequency
1227 MHz (L2)
1561 - 1602 MHz (L1)
Radiation pattern
Hemispherical
Polarisation
RHCP
Max. gain
28 dBi
Impedance
50 Ohm
Search

2J Antennas 2J7C01MC2F

2J7C01MC2F is an external, magnetic mounted antenna from 2J Antennas, optimized for GNSS. The antenna supports frequencies from 1227 MHz (L2) and 1561-1606 MHz (L1) bands. The product dimensions are Ø 54 × 21.5 mm, cable 300 cm with a male SMA connector. Ingress protection: IP67, IP69. The operating temperature range of the antenna is -40...+85°C.
