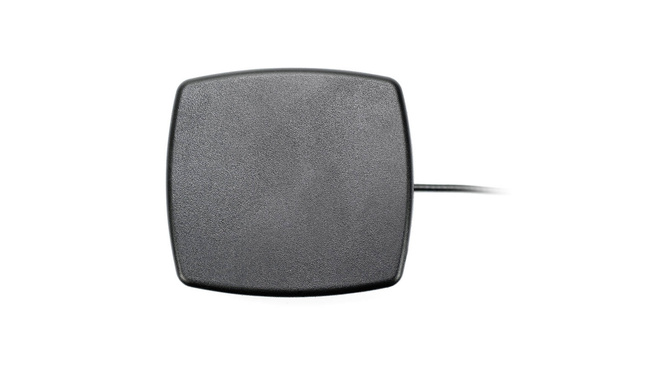

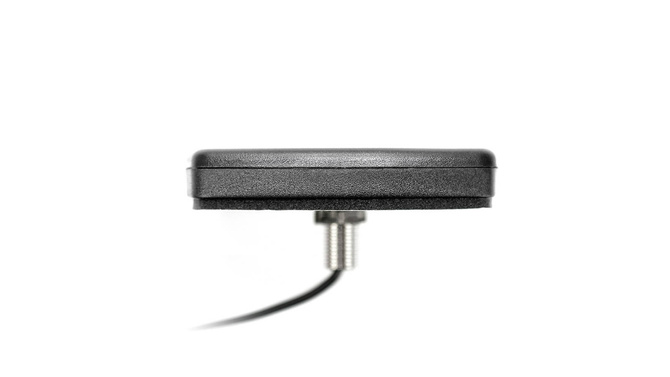

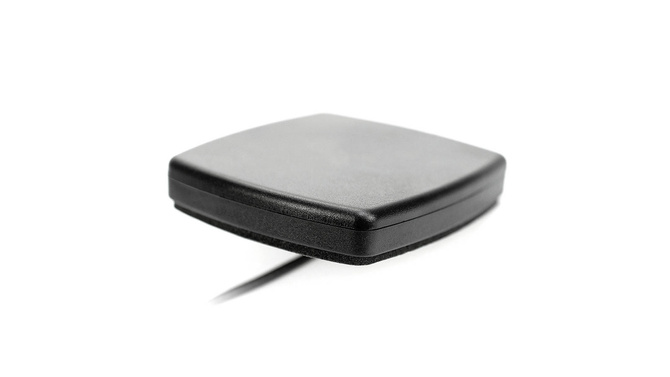

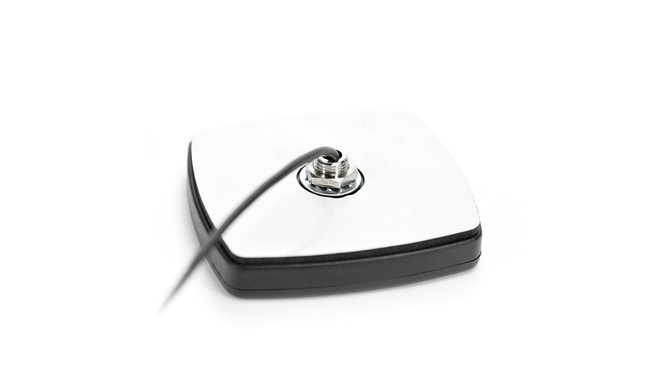

2J Antennas 2J6024B-TH19-300LL100-C20GST - 4G antenna
2J Antennas 2J6024B-TH19-300LL100-C20GST - 4G antenna
2J Antennas 2J6024B-TH19-300LL100-C20GST - 4G antenna
2J Antennas 2J6024B-TH19-300LL100-C20GST - 4G antenna
2J Antennas 2J6024B-TH19-300LL100-C20GST - 4G antenna
2J Antennas 2J6024B-TH19-300LL100-C20GST - 4G antenna
2J Antennas 2J6024B-TH19-300LL100-C20GST - 4G antenna
2J Antennas 2J6024B-TH19-300LL100-C20GST - 4G antenna

2J Antennas 2J6024B-TH19-300LL100-C20GST - 4G antenna

Antenna connector typeSMA male
Cable length (in milimeters)3000
MountingScrew
TechnologyLTEUMTSGSMNB-IoT
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2J6024B
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2J6024B-TH19-300LL100-C20GST
Producer code
5900000821351
Antenna connector typeAntenna connector type
SMA male
Cable length (in milimeters)
3000
MountingMounting
Screw
TechnologyTechnology
LTE
UMTS
GSM
NB-IoT
PositioningPositioning
External
Product height in millimetresProduct height in millimetres
14.7
Product length in millimetersProduct length in millimeters
80
Product width in millimetersProduct width in millimeters
74
Ingress ProtectionIngress Protection
IP67
Temperature rangeTemperature range
-40...+85°C
Frequency
698 - 960 MHz
1710 - 2170 MHz
2500 - 2700 MHz
Max. VSWR
2,2
Max. gain
4,4 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

2J Antennas 2J6024B-TH19-300LL100-C20GST

2J6024B is an external, screw-mounted antenna from 2J Antennas, optimized for 4G as well as supporting 3G, 2G and LPWA standards. The antenna supports frequencies from 698-960 MHz, 1710-2170 MHz, 2500-2700 MHz bands. The product dimensions are 80 x 74 x 14.7 mm, it has a 3000 mm cable with a SMA male-type connector. Ingress protection degree: IP67. The operating temperature range of the antenna is -40...+85°C.
