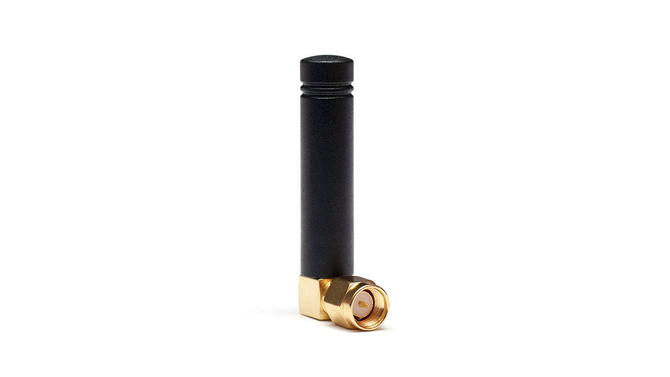

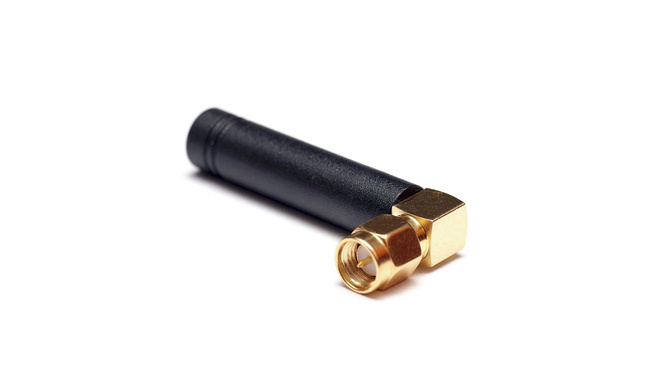

2J Antennas 2J0B24-C884G - 4G antenna
2J Antennas 2J0B24-C884G - 4G antenna
2J Antennas 2J0B24-C884G - 4G antenna
2J Antennas 2J0B24-C884G - 4G antenna
2J Antennas 2J0B24-C884G - 4G antenna
2J Antennas 2J0B24-C884G - 4G antenna

2J Antennas 2J0B24-C884G - 4G antenna

Antenna connector typeSMA male
MountingConnector
TechnologyLTEUMTSGSMNB-IoT
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2J0B24-C884G
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2J0B24-C884G
Producer code
5900000821344
Antenna connector typeAntenna connector type
SMA male
MountingMounting
Connector
TechnologyTechnology
LTE
UMTS
GSM
NB-IoT
PositioningPositioning
External
Product height in millimetresProduct height in millimetres
44
Product width in millimetersProduct width in millimeters
19.1
Product diameter in millimetresProduct diameter in millimetres
9
Temperature rangeTemperature range
-40...+85°C
Frequency
4920 - 7125 MHz
1710 - 2170 MHz
2500 - 2700 MHz
Max. VSWR
5,5
Max. gain
2,7 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

2J Antennas 2J0B24-C884G

2J0B24-C884G is an external, connector-mounted antenna from 2J Antennas, optimized for 4G as well as supporting 3G, 2G and LPWA standards. The antenna supports frequencies from 698-960 MHz, 1710-2170 MHz, 2500-2700 MHz bands. The product dimensions are 44 × 19.1 × Φ 9 mm. SMA male-type connector. The operating temperature range of the antenna is -40...+85°C.
