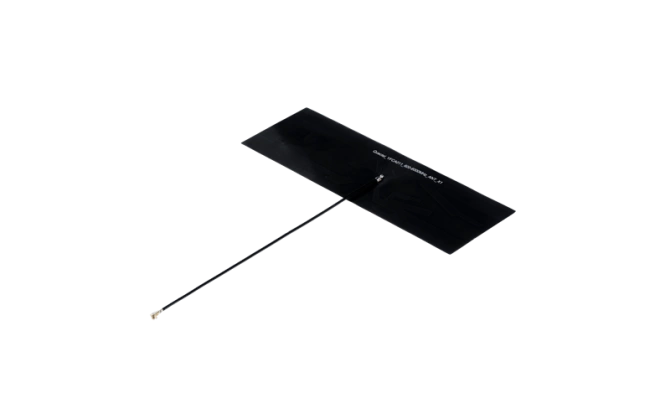

Quectel YFCA011AA - 5G antenna

Quectel YFCA011AA - 5G antenna

Antenna connector typeIPEX MHF 1
Cable length (in milimeters)150
MountingAdhesive
Technology5G - Sub-6 GHz
PositioningInternal
Size
uniwersalny
excl. VAT
2,52 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - YFCA011AA
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Quectel
Symbol
YP0009NA
Antenna connector typeAntenna connector type
IPEX MHF 1
Cable length (in milimeters)
150
MountingMounting
Adhesive
TechnologyTechnology
5G - Sub-6 GHz
PositioningPositioning
Internal
Product length in millimetersProduct length in millimeters
120
Product width in millimetersProduct width in millimeters
47
Temperature rangeTemperature range
-40...+85°C
Frequency
1520 - 6000 MHz
600 - 960 MHz
Max. VSWR
3,1
Max. gain
7,5 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

Quectel YFCA011AA

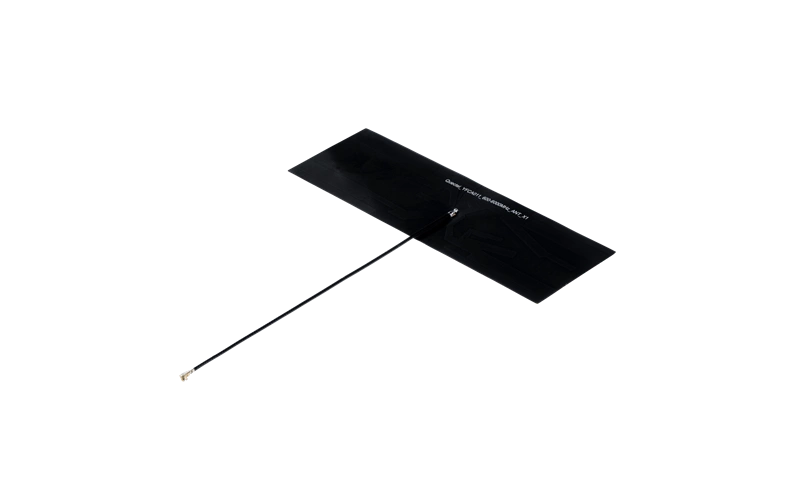

YFCA011AA is an embedded FPC antenna from Quectel, supporting 5G standard, adhesive mounted. It supports frequencies from 600–960 MHz, 1520–6000 MHz range. Product dimensions are 120 × 47 mm, 150 mm cable with an IPEX MHF 1 connector. The operating temperature range of the antenna is -40...+85°C.
